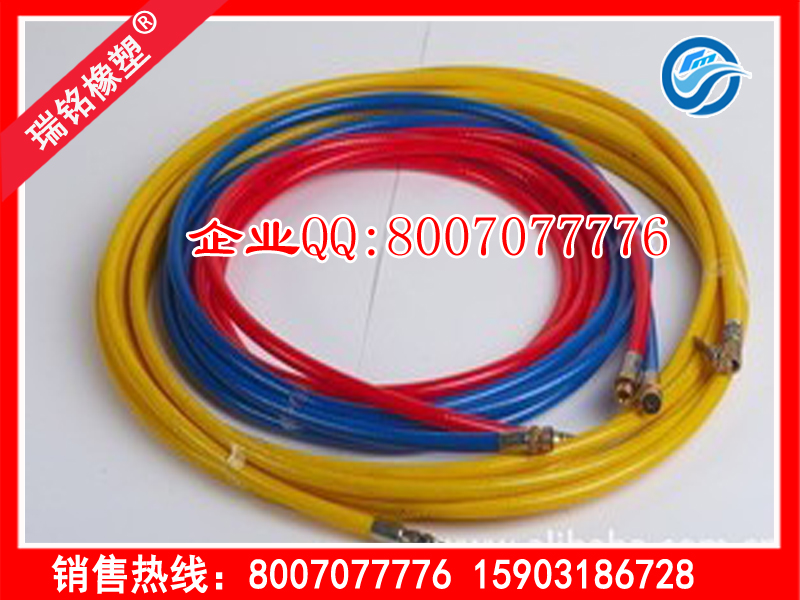

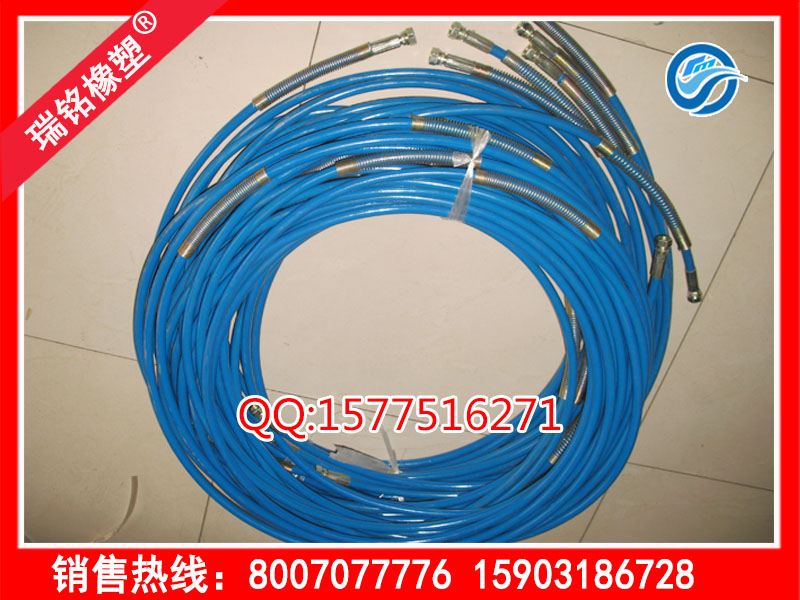

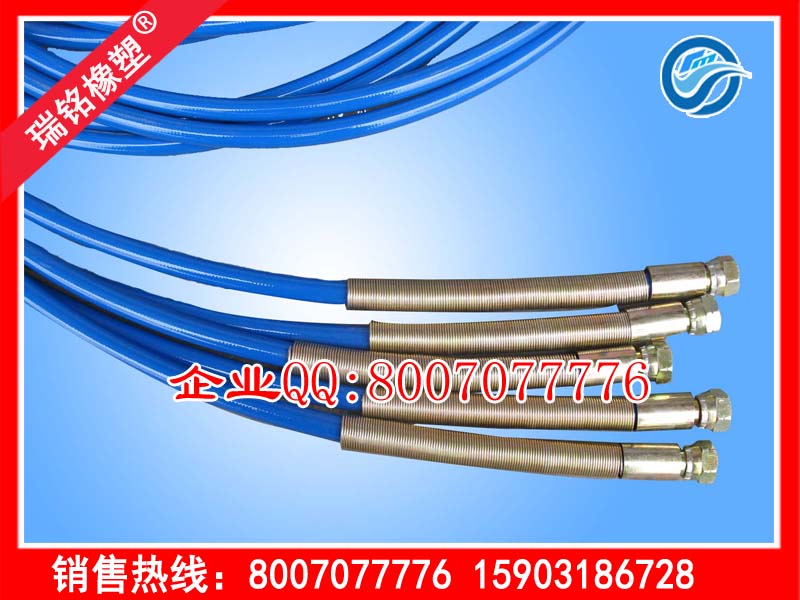

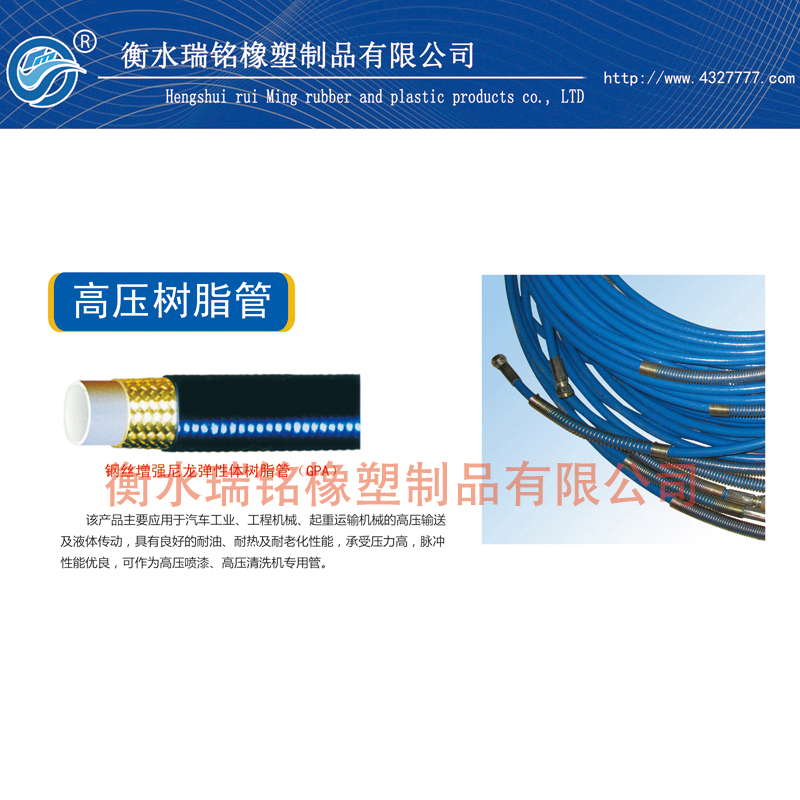

高壓樹脂管（鋼絲增強尼龍彈性體樹脂管）
產品主要用于汽車工業、工程機械、起重運輸機的高壓輸送及液體傳動，具有良好的耐油、耐熱及耐老化性能，承受壓力高，脈沖性能優良，可作為高壓噴漆專用管。

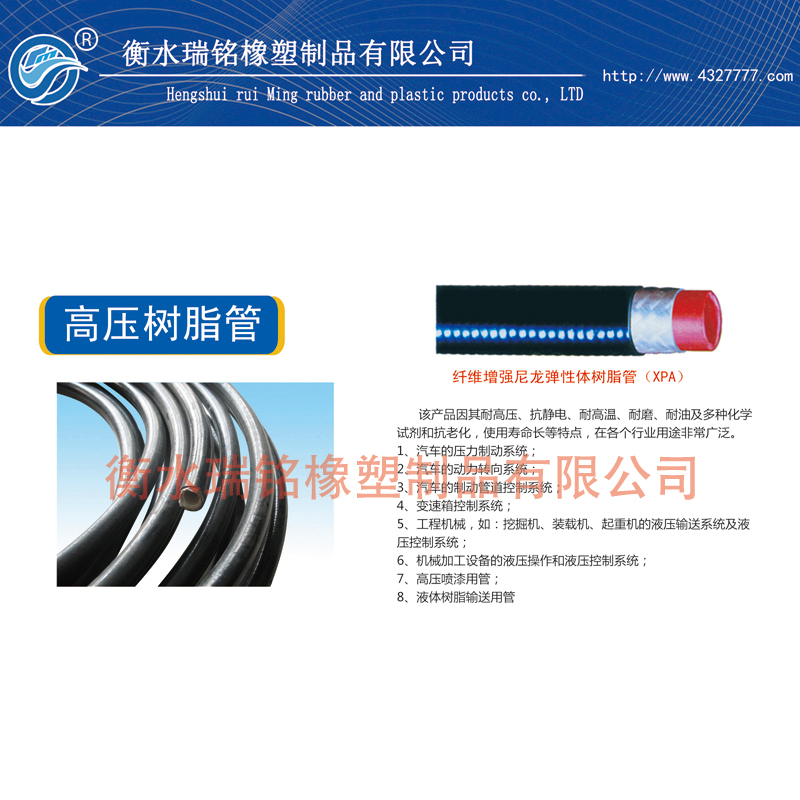

纖維增強尼龍彈性體樹脂管
產品因其耐高壓、耐高溫、耐磨、耐油及多種化學試劑和抗老化、使用壽命長等特點，在各個行業用途非常廣泛。
1、汽車的壓力制動系統；
2、汽車的動力轉向系統；
3、汽車的制動管道控制系統；
4、變速箱控制系統；
5、工程機械，如：挖掘機、裝載機、起重機的液壓輸送系統及液壓控制系統；
6、機械加工設備的液壓操作和液壓控制系統；
7、高壓噴漆用管；
8、液體樹脂輸送用管。
|

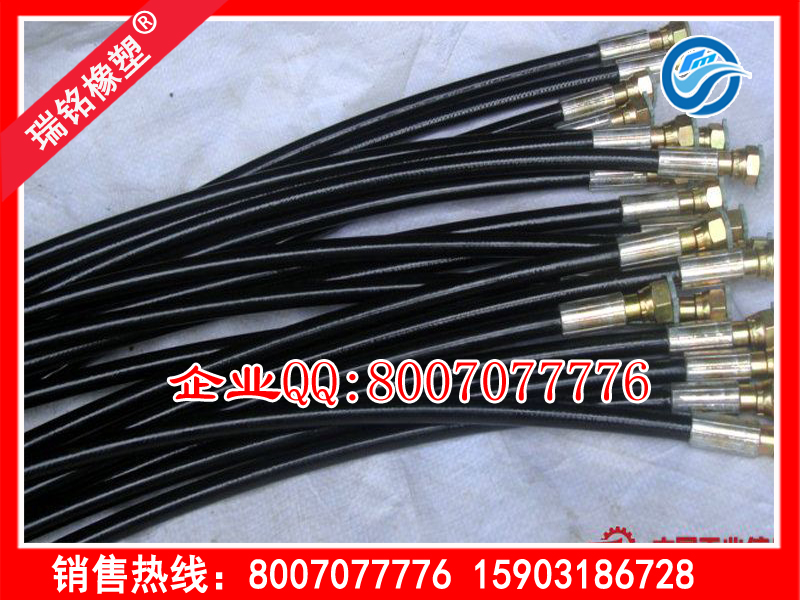

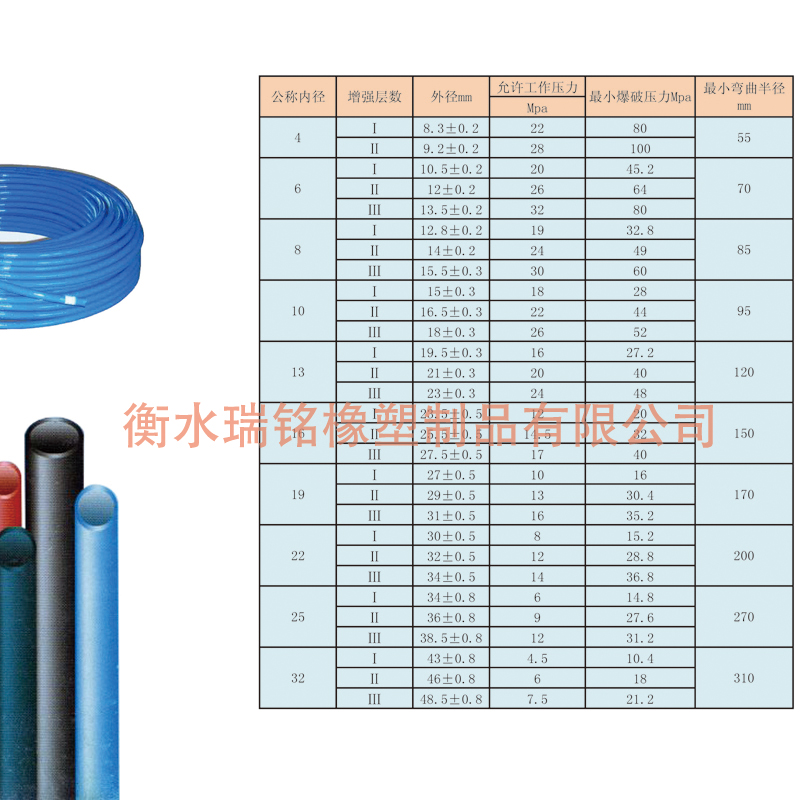

公稱內徑 |
增強 |
外徑mm |
允許工作壓力Mpa |
最小爆破壓力Mpa |
最小彎曲半徑mm |
||||
|
GPU型 |
XPU型 |
GPU型 |
XPU型 |
GPU型 |
XPU型 |
GPU型 |
XPU型 |
||
|
4 |
Ⅰ |
8.6 |
8.3 |
40 |
22 |
152 |
80 |
85 |
55 |
|
Ⅱ |
10.5 |
9.2 |
53 |
28 |
168 |
100 |
|||
|
6 |
Ⅰ |
11.5 |
10.5 |
31 |
20 |
124 |
45.2 |
100 |
70 |
|
Ⅱ |
12.8 |
12 |
42 |
26 |
156 |
64 |
|||
|
Ⅲ |
14 |
13.5 |
47 |
32 |
172 |
80 |
|||
|
8 |
Ⅰ |
13 |
12.8 |
26 |
19 |
112 |
32.8 |
115 |
85 |
|
Ⅱ |
14.5 |
14 |
38 |
24 |
160 |
49 |
|||
|
Ⅲ |
15.5 |
15.5 |
50 |
30 |
180 |
60 |
|||
|
10 |
Ⅰ |
15 |
15 |
26 |
18 |
88 |
28 |
125 |
95 |
|
Ⅱ |
16.5 |
16.5 |
30 |
22 |
106 |
44 |
|||
|
Ⅲ |
18 |
18 |
35 |
26 |
114 |
52 |
|||
|
12 |
Ⅰ |
20 |
19.5 |
18 |
16 |
72 |
27.2 |
180 |
120 |
|
Ⅱ |
22.5 |
21 |
26 |
20 |
108 |
40 |
|||
|
Ⅲ |
24.5 |
23 |
30 |
24 |
120 |
48 |
|||
|
16 |
Ⅰ |
23.5 |
23.5 |
14 |
12 |
56 |
20 |
205 |
150 |
|
Ⅱ |
26 |
25.5 |
19 |
14.5 |
88 |
32 |
|||
|
Ⅲ |
28 |
27.5 |
25 |
17 |
96 |
40 |
|||
|
19 |
Ⅰ |
27.5 |
27 |
15 |
10 |
44 |
16 |
240 |
170 |
|
Ⅱ |
29.5 |
29 |
24 |
13 |
72 |
30.4 |
|||
|
Ⅲ |
31.5 |
31 |
28 |
16 |
80 |
35.2 |
|||
|
22 |
Ⅰ |
30.5 |
30 |
13 |
8 |
44 |
15.2 |
260 |
200 |
|
Ⅱ |
32.5 |
32 |
16 |
12 |
52 |
28.8 |
|||
|
Ⅲ |
34.5 |
34 |
20 |
14 |
60 |
36.8 |
|||
|
25 |
Ⅰ |
34 |
34 |
12 |
6 |
31 |
14.8 |
300 |
270 |
|
Ⅱ |
36 |
36 |
15 |
9 |
42 |
27.6 |
|||
|
Ⅲ |
39 |
38.5 |
18 |
12 |
64 |
31.2 |
|||
|
32 |
Ⅰ |
43 |
43 |
11 |
4.5 |
32 |
10.4 |
350 |
310 |
|
Ⅱ |
46 |
46 |
12 |
6 |
44 |
18 |
|||
|
Ⅲ |
49 |
48.5 |
15 |
7.5 |
52 |
21.2 |
|||
|

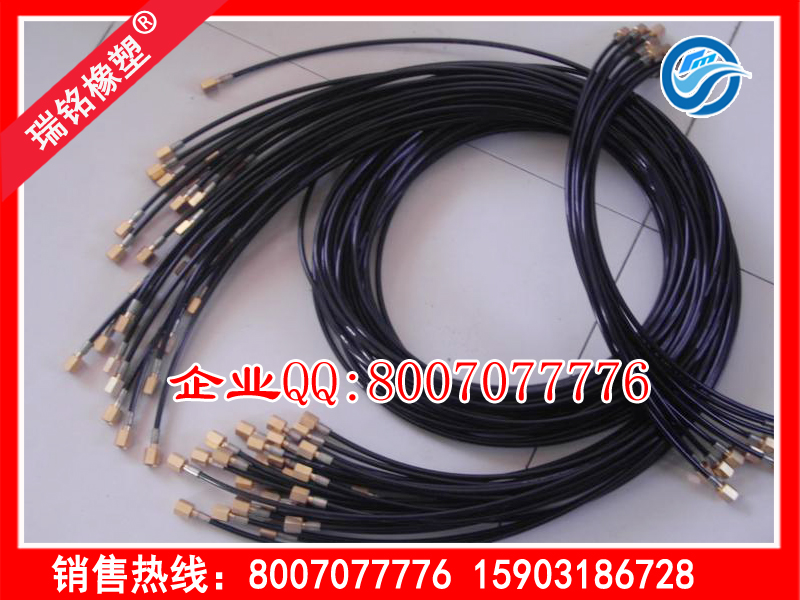

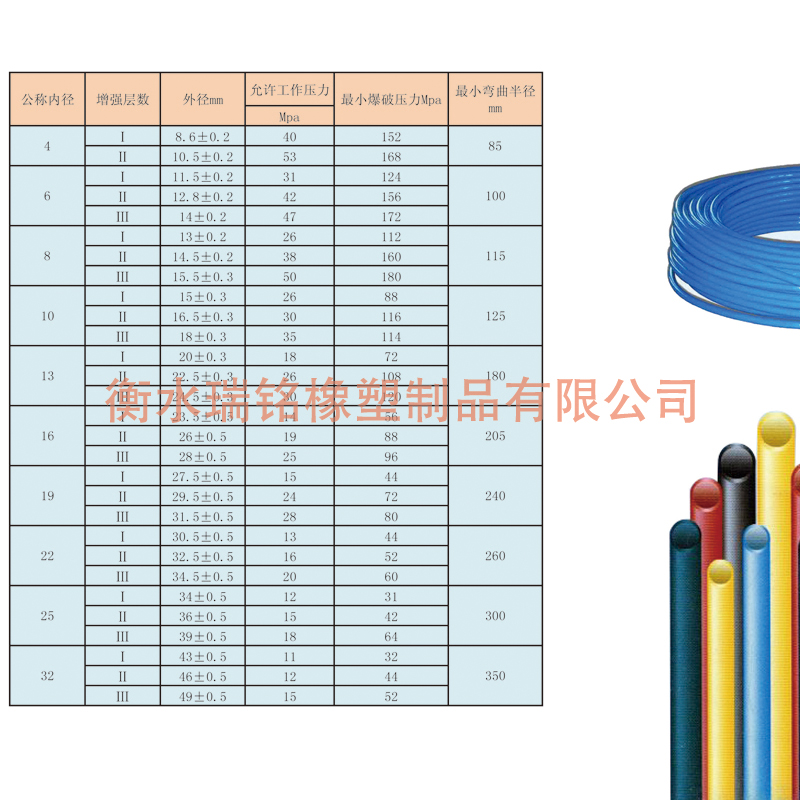

公稱內徑 |
